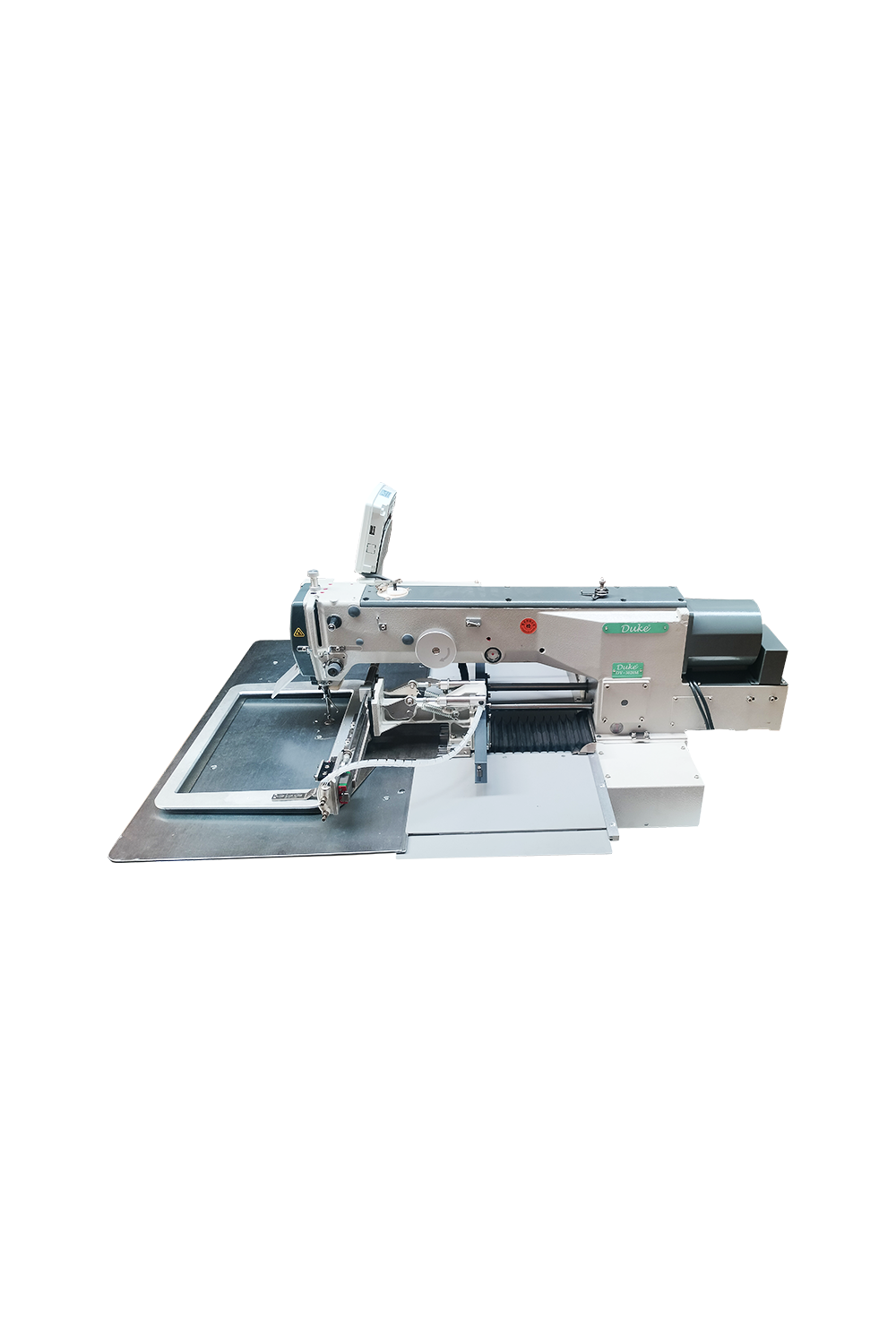

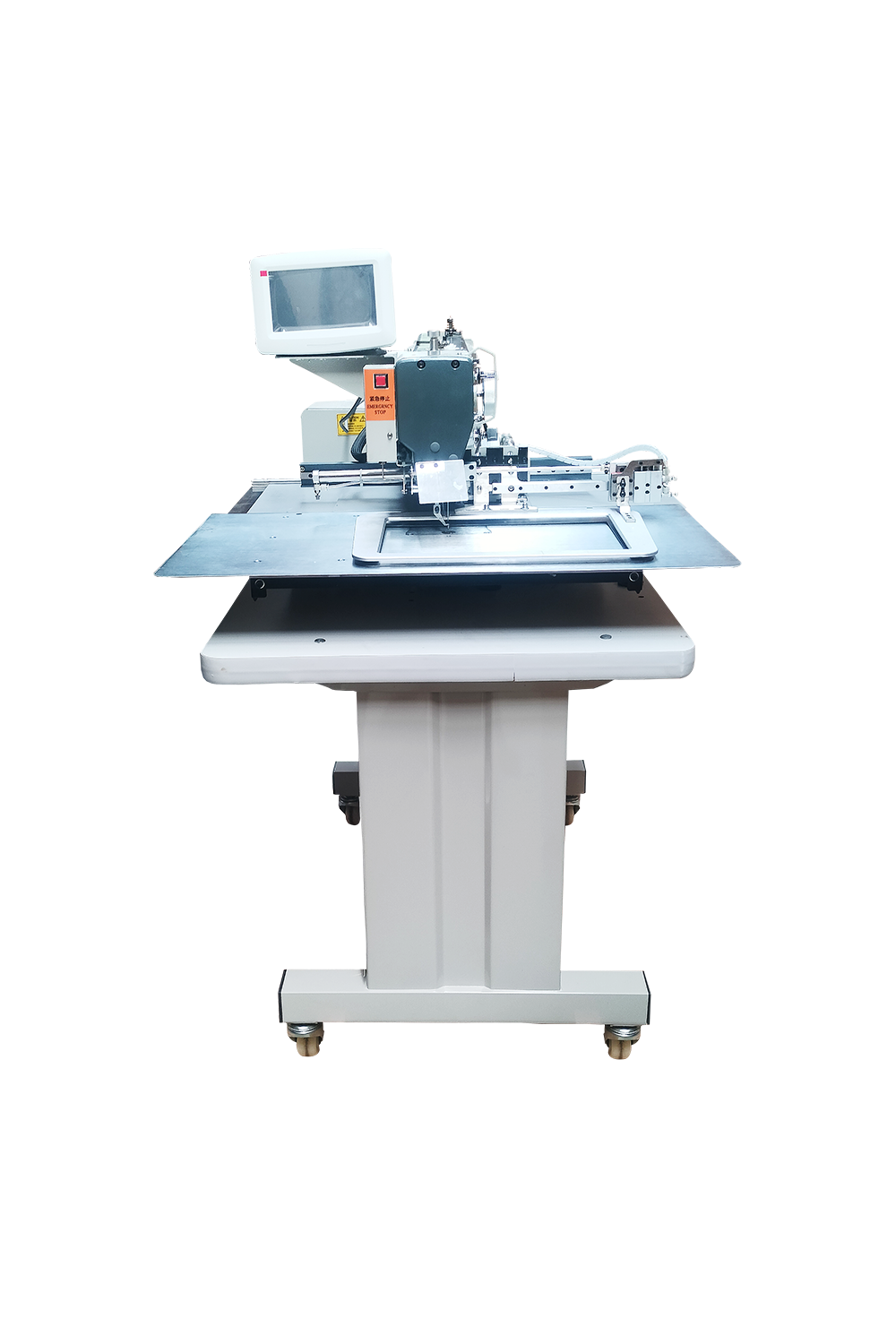

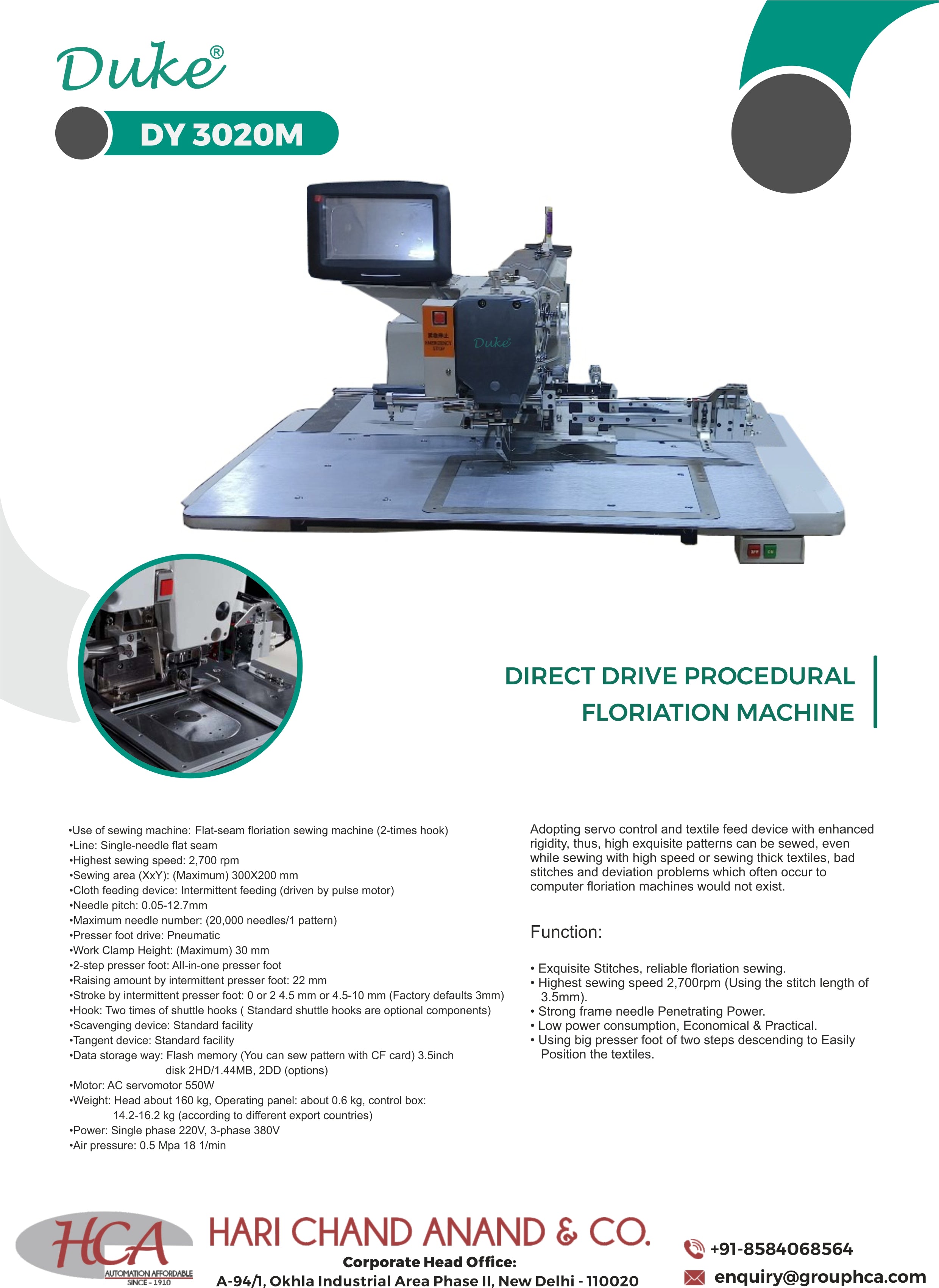

Duke DY-3020M | PATTERN F TYPE INTEGRATED

PATTERN F TYPE INTEGRATED
PATTERN F TYPE INTEGRATED

PATTERN F TYPE INTEGRATED

Rs. 0.00
Sold out

Description

The Duke DY-3020M Pattern F Type Integrated Direct Drive Procedural Floriation Machine is an advanced industrial device for precise floriation processes. Its direct drive mechanism enhances efficiency, accuracy, and durability by removing belts or gears. Designed for high-speed, vibration-free operation, it is ideal for patterning, engraving, or texturing various materials.

Function

  • Work Clamp Height: (Maximum) 30 mm
  • 2-step presser foot: All-in-one presser foot
  • Raising amount by intermittent presser foot: 22 mm Stroke by intermittent presser foot: 0 or 2 4.5 mm or 4.5-10 mm (Factory defaults 3mm)
  • Hook: Two times of shuttle hooks (Standard shuttle hooks are optional components)
  • Scavenging device: Standard facility
  • Tangent device: Standard facility
  • Data storage way: Flash memory (You can sew pattern with CF card) 3.5inch disk 2HD/1.44MB, 2DD (options)•Motor: AC servomotor 550W
  • Weight: Head about 160 kg, Operating panel: about 0.6 kg, control box: 14.2-16.2 kg (according to different export countries)
  • Power: Single phase 220V, 3-phase 380V
  • Air pressure: 0.5 Mpa 18 1/min"

Feature

  • Use of sewing machine: Flat-seam floriation sewing machine (2-times hook)
  • Line: Single-needle flat seam
  • Highest sewing speed: 2,700 rpm
  • Sewing area (XxY): (Maximum) 300X200 mm
  • Cloth feeding device: Intermittent feeding (driven by pulse motor)
  • Needle pitch: 0.05-12.7mm
  • Maximum needle number: (20,000 needles / 1 pattern)
  • Presser foot drive: Pneumatic
